Sump Pits
Polywest is a recognized leader in the sump pit industry, because our tanks are built to last, and the sump pits are no exception. Each of our Sump Pit tanks showcases the following features:
- Strong and corrosion-resistant
- Made from durable polyethylene
- Designed with a large flange to lock the tank into the concrete.
- Precut cord and discharge pipe holes with supplied grommets
- Sealed HDPE lid with neoprene gasket
- Stainless steel hardware
- Anti-flotation flange to lock the tank into the floor slab
- Octagonal design gives multiple locations for weeping tile inlets and adds structure to the tank
Our sump pits are made of high-density polyethylene and serve to collect excess water from under your basement floor and foundation walls. We offer a variety of sump pits and building codes may dictate which pit is required in your area. Your plumber or foundation contractor will be the expert to consult with for which type of sump pit and pump to use.
| Capacity | Weight | ||
|---|---|---|---|
| Part | Description | (Imp. Gal.) | (lbs.) |
| SP‑01OCT | 18" × 30" Octagonal Sump Pit | 27 | 13 |
| SP‑02OCT | 30" × 30" Octagonal Sump Pit | 75 | 25 |
| SP‑03OCT | 23" × 30" Octagonal Sump Pit | 45 | 16 |
| SP‑03 | 21" × 30" Round CMHC Approved Sump Pit | 45 | 16 |
| CSP‑LIDKIT | Replacement Lid And Gasket | ||
| 515 | Grommet |

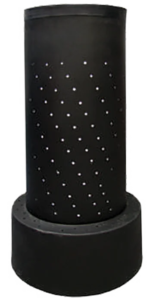

Perforated Sump Pits
- Two models: 36″ High & 48″ High
- 12″ extensions also available
- Durable and adaptable to different applications
- Used in new builds and renovations
| Part | Size |
|---|---|
| PSP‑3 | 28" dia. × 36" high |
| PSP‑4 | 28" dia. × 48" high |
| PSP‑EXT | 12" extension |
Ribbed Sump Pits & Sewage Lift Station
The heavy duty ribbed design of these sump pits provide the durability required for deeper burial.
| Capacity | Dimensions | |||
|---|---|---|---|---|
| Part | Gallon | Litre | Dia. | Height |
| 41239‑SP | 112 | 509 | 33" | 42" |
| 41017‑SP | 154 | 700 | 33" | 57" |
| 41018‑SP | 241 | 1,096 | 33" | 91" |
